Description
SPECIFICATIONS
Brand Name: smallrig
Compatibility 1: for DJI RS 3 / RS 3 Pro
Compatibility 2: for DJI RS 3 mini / RS 2 / RSC 2
Compatibility 3: for Ronin SC for Ronin C
Compatibility 4: for DJI RS 4 / for DJI RS 4Pro
Compatibility 5: for DJI RS 4 Mini
Features: with 1/4"-20 threaded hole
High-concerned chemical: none
Load-bearing capacity: 500g / 17.6oz
Material: Aluminum
Model Number: 4301
Origin: Mainland China
Package: Yes
Product Weight: 101±5.0g
Size: 110 x 31.3 x 41.3mm

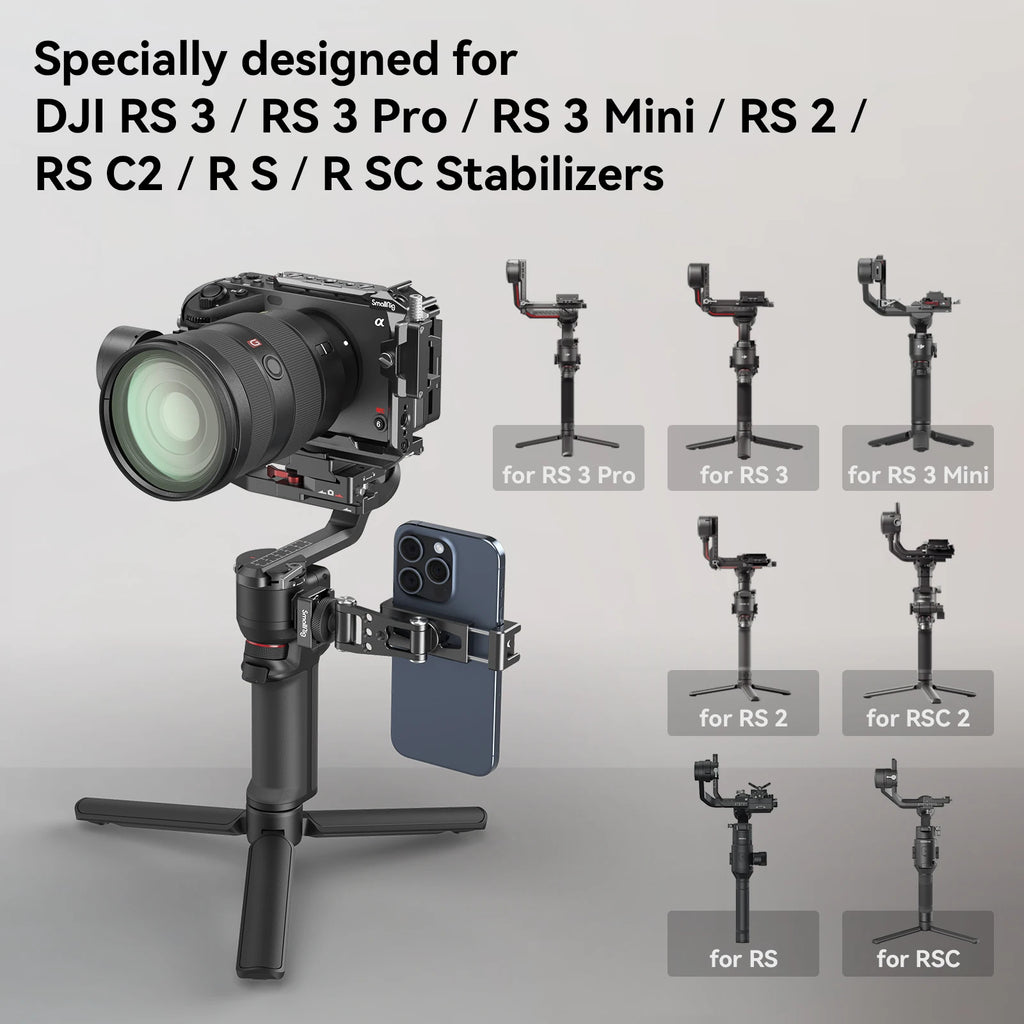

1. Specially designed for DJI RS 3 / RS 3 Pro / RS 3 mini / RS 2 / RS C2 /R S / R SC and installed onto the side NATO rail;

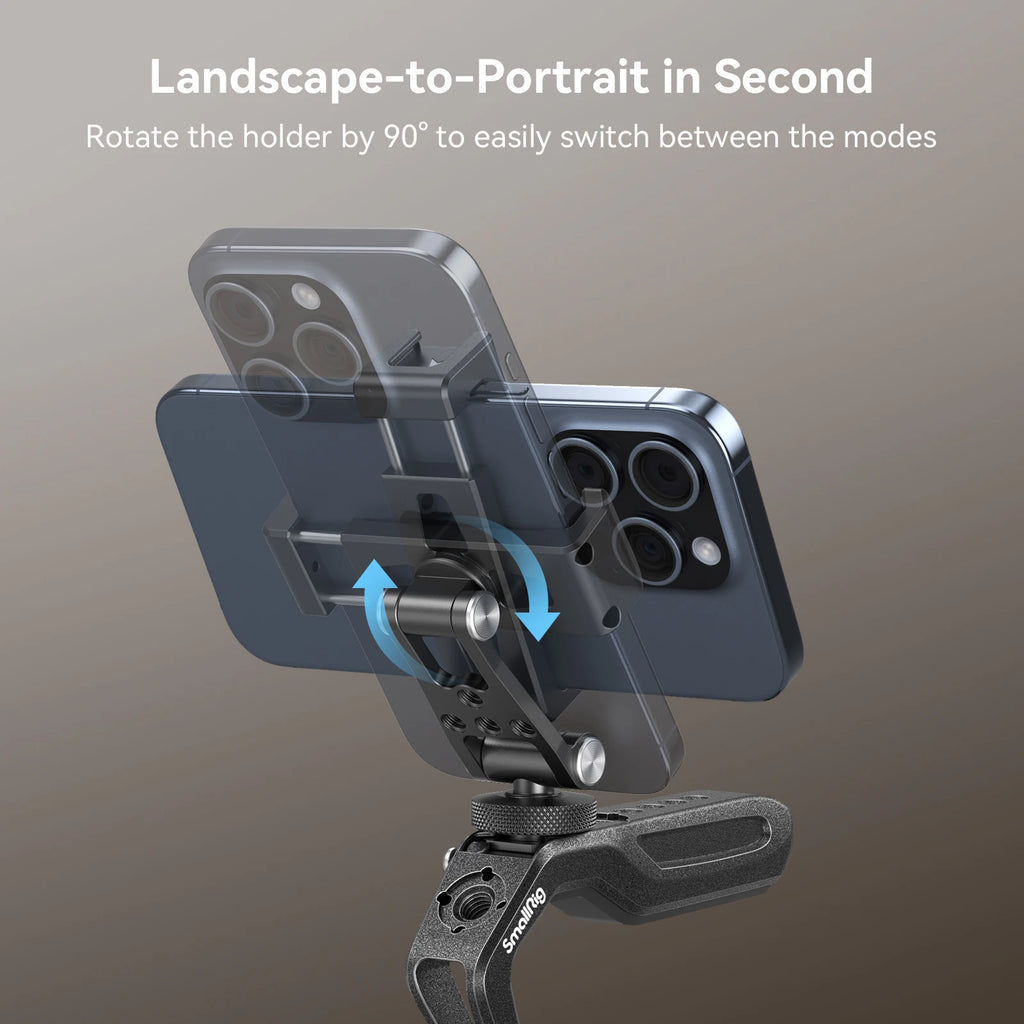

2. Quick switch between landscape and portrait modes for easy shooting or monitoring;
3. Free adjustment via three rotary joints;

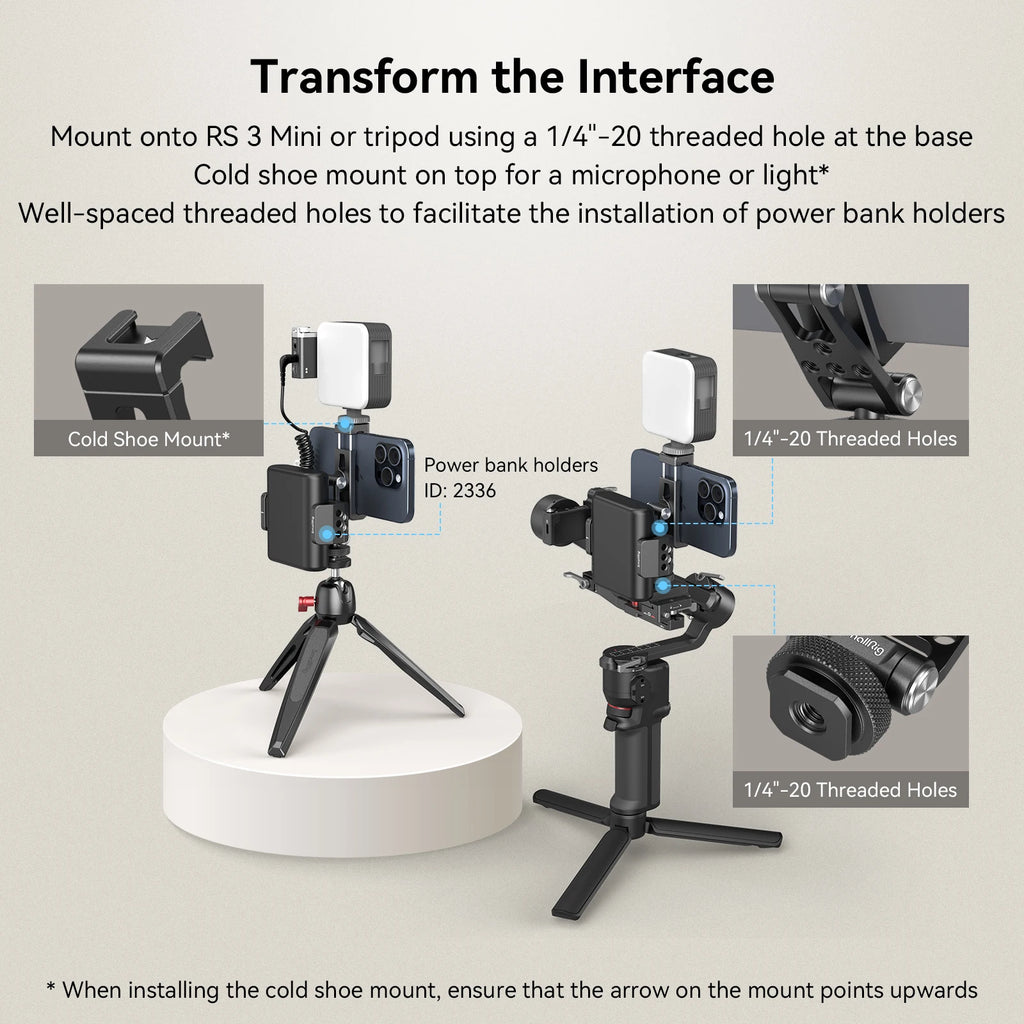

4. Well-spaced threaded holes to facilitate the installation of power bank holders 2336 / 2790.

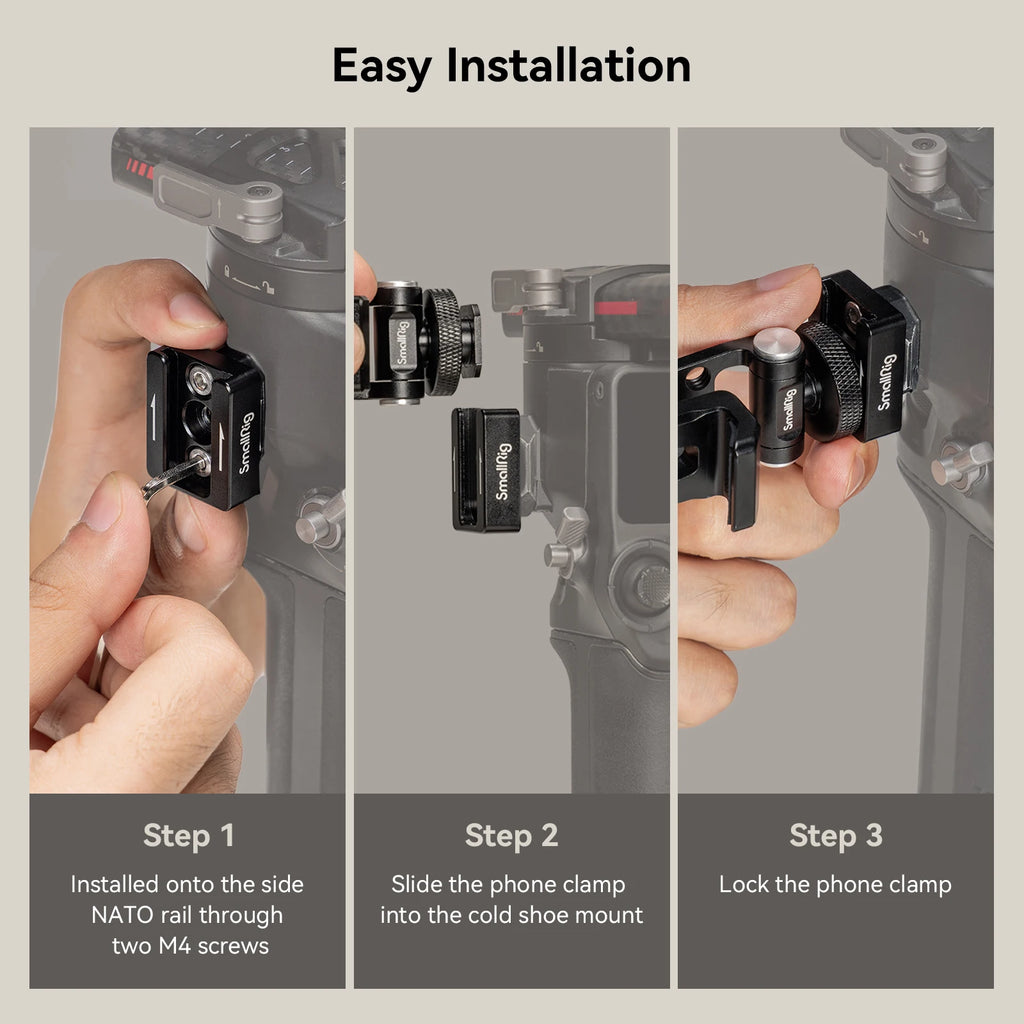

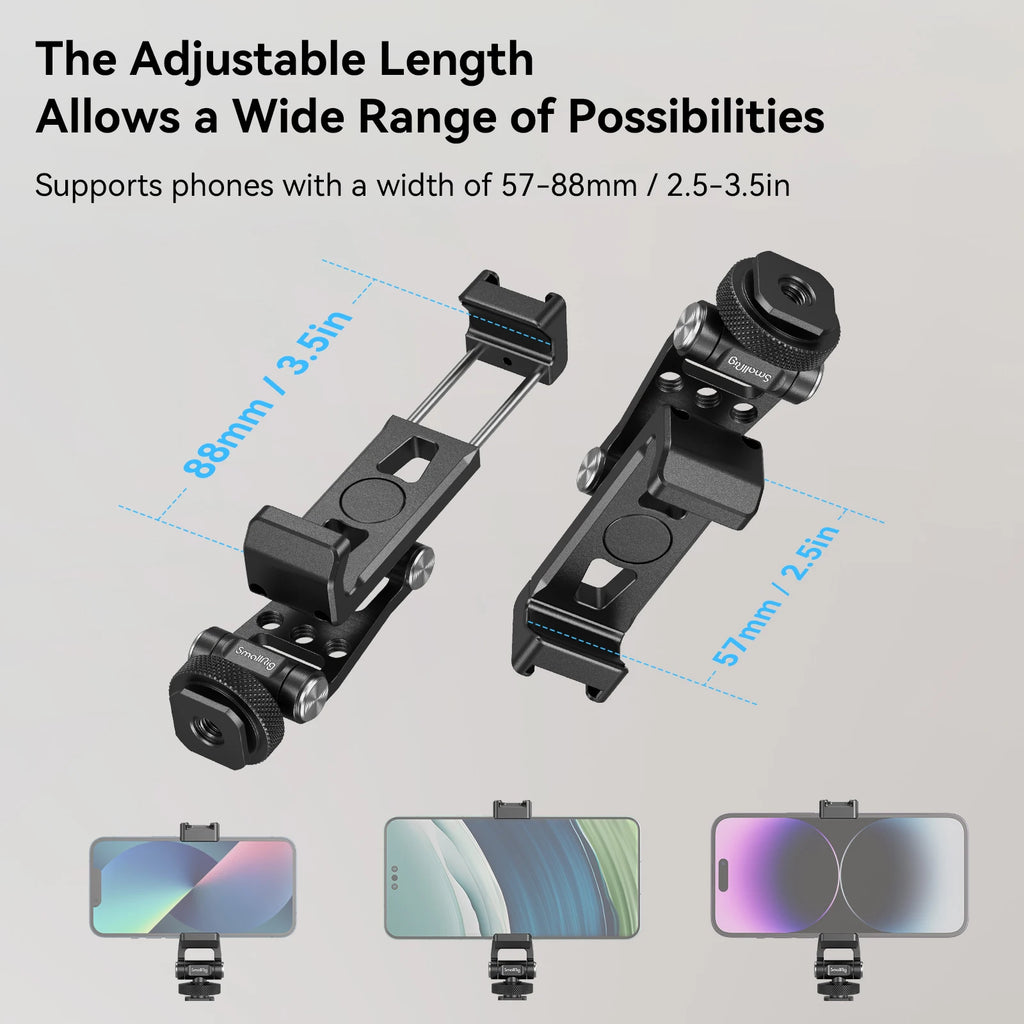

SmallRig Phone Holder for DJI Gimbals 4301 is specially designed for DJI RS 3 / RS 3 Pro / RS 3 mini / RS 2 / RS C2 / R S / R SC and installed onto the side NATO rail through M4 screws. When not in use, release the cold shoe mount to detach your phone. The phone holder can be mounted on the top of a camera with a 1/4"-20 screw and supports phones with a width of 57-88mm / 2.5-3.5in. Quick switching between landscape and portrait modes and easy angle fixing with more than 90° rotating. There is a 1/4"-20 threaded hole at the bottom for RS 3 mini or tripod, and a cold shoe mount on top for microphone or light.
Note:
1.Load-bearing capacity: 500g / 17.6oz
2.Please note, the arrow must point up while installing the cold shoe
3. When in portrait mode, the phone may block the gimbal axis rotation.
Compatibility:
DJI RS 3
DJI RS 3 Pro
DJI RS 3 mini
DJI RS 2
DJI RSC 2
Ronin SC
Ronin C

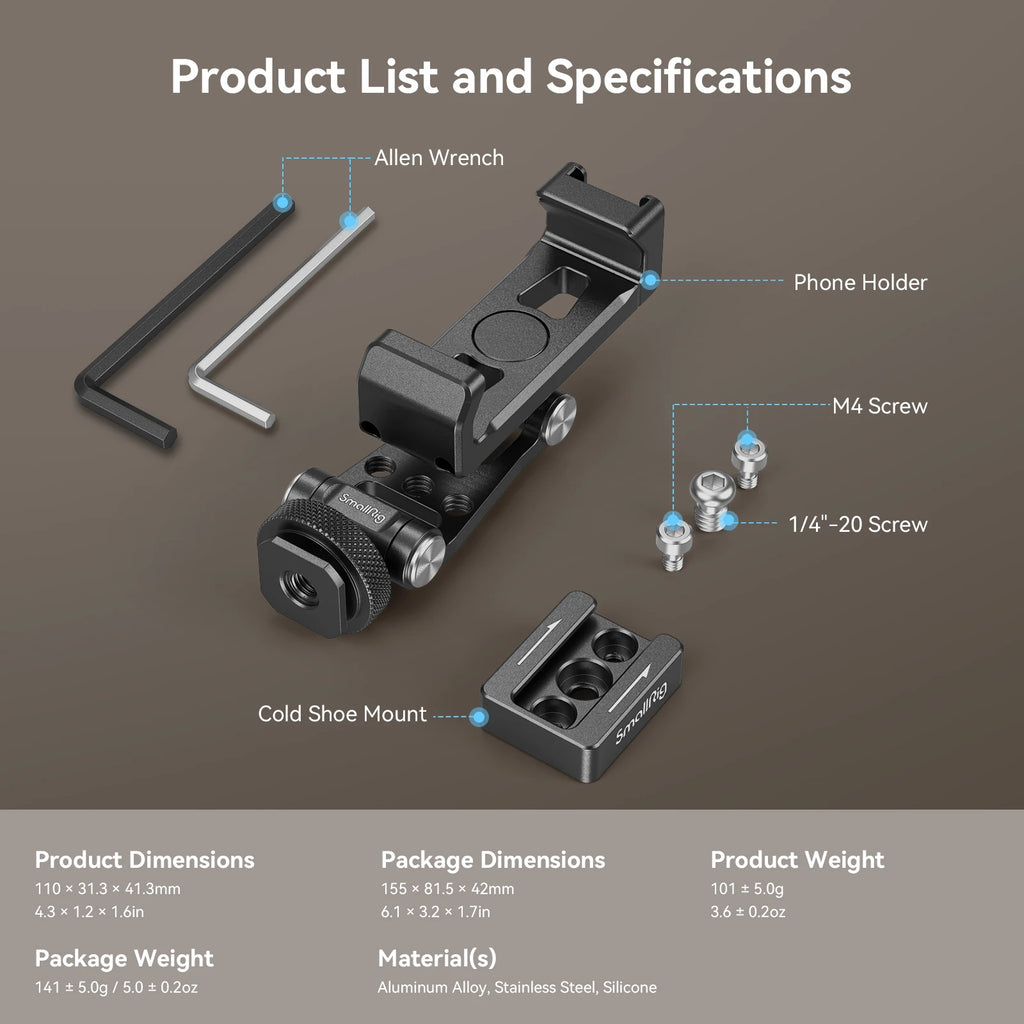

Package:
Phone Holder x 1
Cold Shoe Mount x 1
M4 Screw x 2
1/4"-20 Screw x 1
Allen Wrench x 2
Specifications
Product Dimensions: 110 x 31.3 x 41.3mm / 4.3 x 1.2 x 1.6in
Package Dimensions: 155 x 81.5 x 42mm / 6.1 x 3.2 x 1.7in
Product Weight: 101±5.0g / 3.6±0.2oz
Package Weight: 141±5.0g / 5.0±0.2oz
Material(s): Aluminum Alloy, Stainless Steel, Silicone
