Description
SPECIFICATIONS
Brand Name: SUNLU
Diameter: 1.75mm
Drying temp.: 80-110℃
Form: Solid
High-concerned chemical: none
Material: PA
Model Number: SUNLU PA6-CF 3D Filament
Nozzle print temp.: 270-290℃
Origin: Mainland China
Print platform temp.: 50-70℃
Printing speed: 50-100mm/s
Raft distance: 0.3-0.5mm
Retraction distance: 0.8-1mm
Retraction speed: 30mm/s
Room temp.: Ordinary temperatures
Shelf Life: 1years

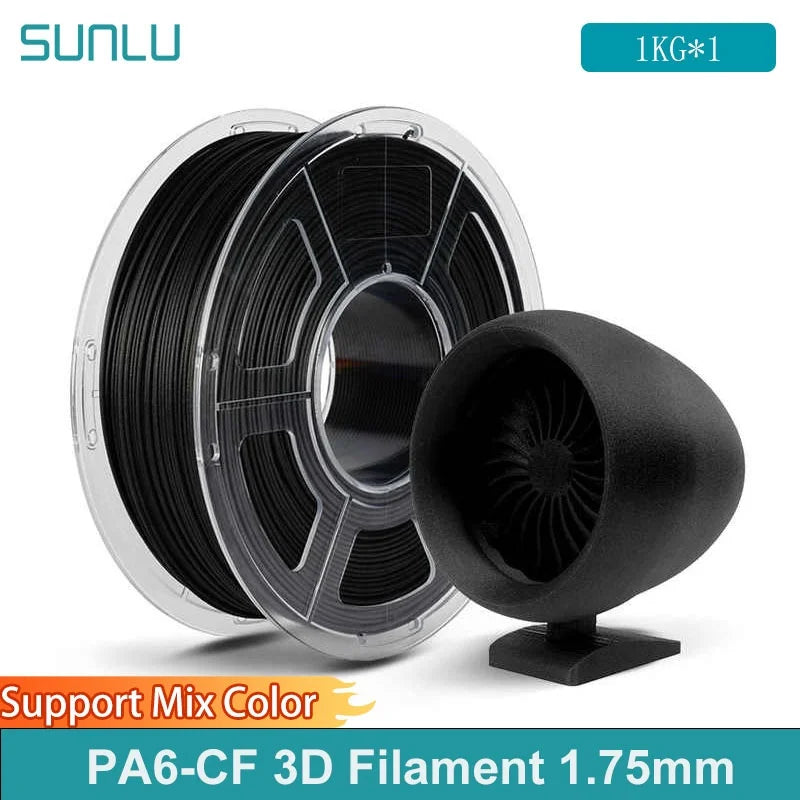

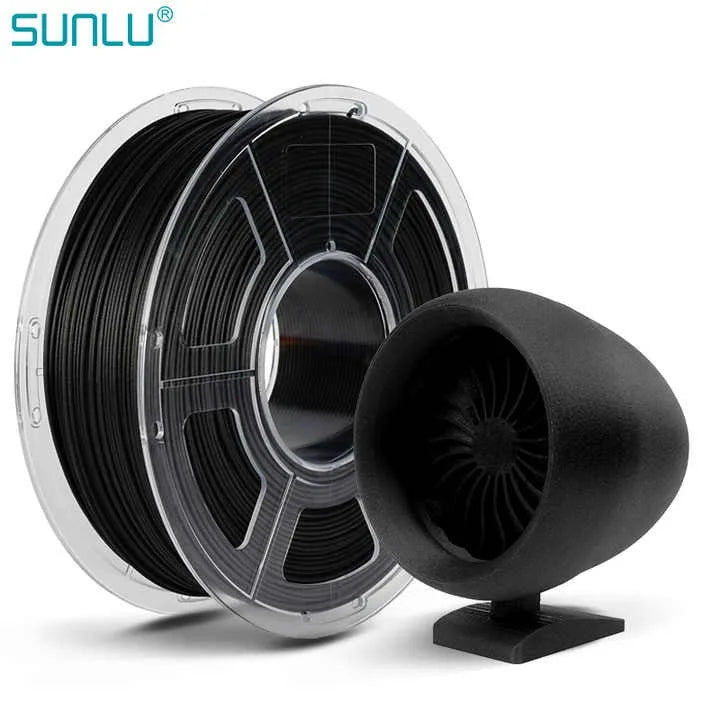

SUNLU PA6-CF 3D Filament

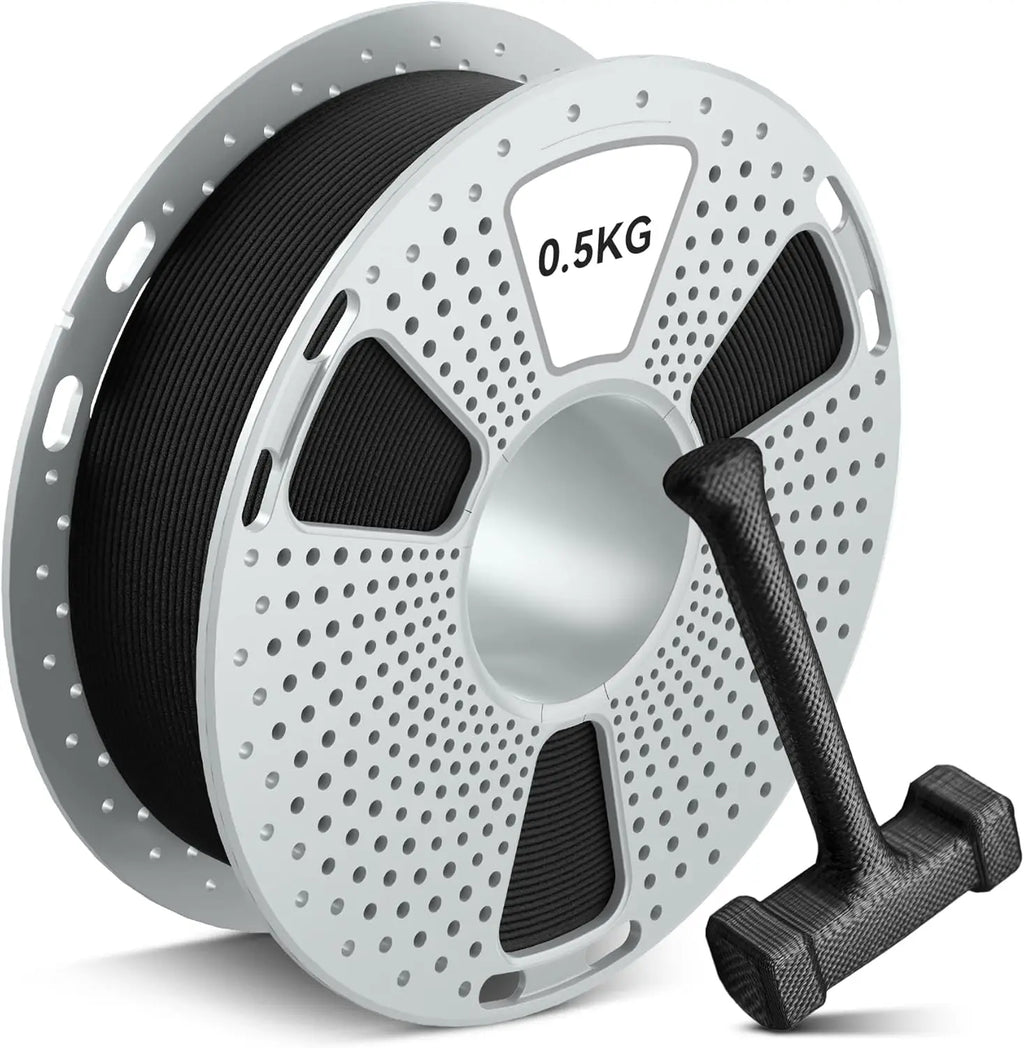

SUNLU 500G PA6-CF 3D Filament 1.75mm, Heat Deflection Temperature up to 209°C, Made of 80% PA Nylon and 20% Carbon Fibers, Stiff & Strong & Heat Resistant, for Industrial Parts, 0.5KG Spool, Black
SUNLU Carbon Fiber-Textured Nylon Filament Durable Drop-Resistant and Heat-Resistant 3D Printer Filament
SUNLU PA6-CF 3D Filament 1.75mm Carbon Fiber-Textured Nylon Filament for Industrial Parts&3D Printer ,0.5KG/1KG Spool
[Parameters and recommendations]
[Optimized Printing Settings]
Nozzle Temperature: 270-280°C
- Bed Temperature: 100°C
- Printing Speed: 50-150mm/s
- Annealing: 80-130°C for 5-12 hours (essential for maximizing heat resistance)
- Bed Surface: Use a thin coat of PVA glue or Magigoo PA for improved adhesion.
[Important Notes]
1. Dry the filament before use: 80°C for 24 hours or 110°C for 4 hours.
2. Use an abrasion-resistant nozzle (e.g., hardened steel) to prevent wear caused by the filament's carbon fiber content.
Diameter: 1.75MM±0.03MM
Printing temperature:
270-280℃：50-100mm/s
Bed temperature: need glue and bed temp heated up to 50-70℃
Bubble: 100% zero bubble
Net weight: 1KG/roll
Gross weight: 1.3KG/roll
Length: 1.75MM(1KG)≈358M
Mechanical |
Thermal |
|||
(X-Y)Tensile Strength: 170MPa |
(X-Y)Heat Deflection (HDT): 209℃ |
|||
(X-Y) Elongation at break: 10% |
Glass Transition(Tg): 65℃ |
|||
(X-Y) Flexural Strength: 245MPa |
Melting Point: 225℃ |
|||
(X-Y) Flexural Modulus: 11000MPa |
@5%Decomposition Temp.: ≥330℃ |
|||
(X-Y)IZOD Impact Notched: 9.7KJ/m² |
||||
(Z-X)IZOD Impact Notched: 3.8KJ/m² |
||||
Shore hardness: 84HA/HD |
||||
Others | ||||
Melt Flow Rate: 15g/10min |
Dielectric Constant: 3.4 |
|||
Density: 1.2g/cm³ |
Flammability: HB |
|||
Volume Resistivity: 1.05*10¹² |
||||
[Perfect for Industrial Engineering]
Engineered for strength and durability, SUNLU PA6-CF filament is suitable for industrial uses that require high torsional, tensile, and impact resistance. Ideal applications include gears, screws, helmets, fan blades, toy car chassis, skateboard parts, and bicycle frames.
[High Strength & Heat Resistance]
SUNLU PA6-CF nylon filament combines 80% PA with 20% carbon fiber, delivering remarkable stiffness, strength, and heat resistance. It offers excellent layer adhesion, making it ideal for demanding applications.
[Superior Heat Resistance]
With a heat distortion temperature of up to 209°C, significantly higher than Easy PA, PC, or ASA, PA6-CF is ideal for high-temperature applications like automotive exhaust pipes, motor covers, pot handles, and kettle bases.
