Description
SPECIFICATIONS
Audio Output Type: Speakers
Brand Name: NONE
Certification: CE
Channels: 2 (2.0)
Control Method: Others
High-concerned chemical: none
Material: Plastic
Maximum Power Per Channel: 100 W
Model Number: YS-1002T/YS-502L
Origin: Mainland China
Output Power: 200w
Package: Yes
Parts: Amplifier board
Surround sound channel configuration: Others
YS-1002T and YS-502L. Both models are designed for DIY speakers, home audio systems, desktop speakers, small sound projects, and audio modification use. They support Bluetooth and AUX audio input, offering convenient wireless and wired connection options.
The amplifier board features a compact structure, stable output, Hi-Fi sound performance, and practical audio adjustment design. It is suitable for users who need a small but powerful 2.0 channel stereo amplifier module.

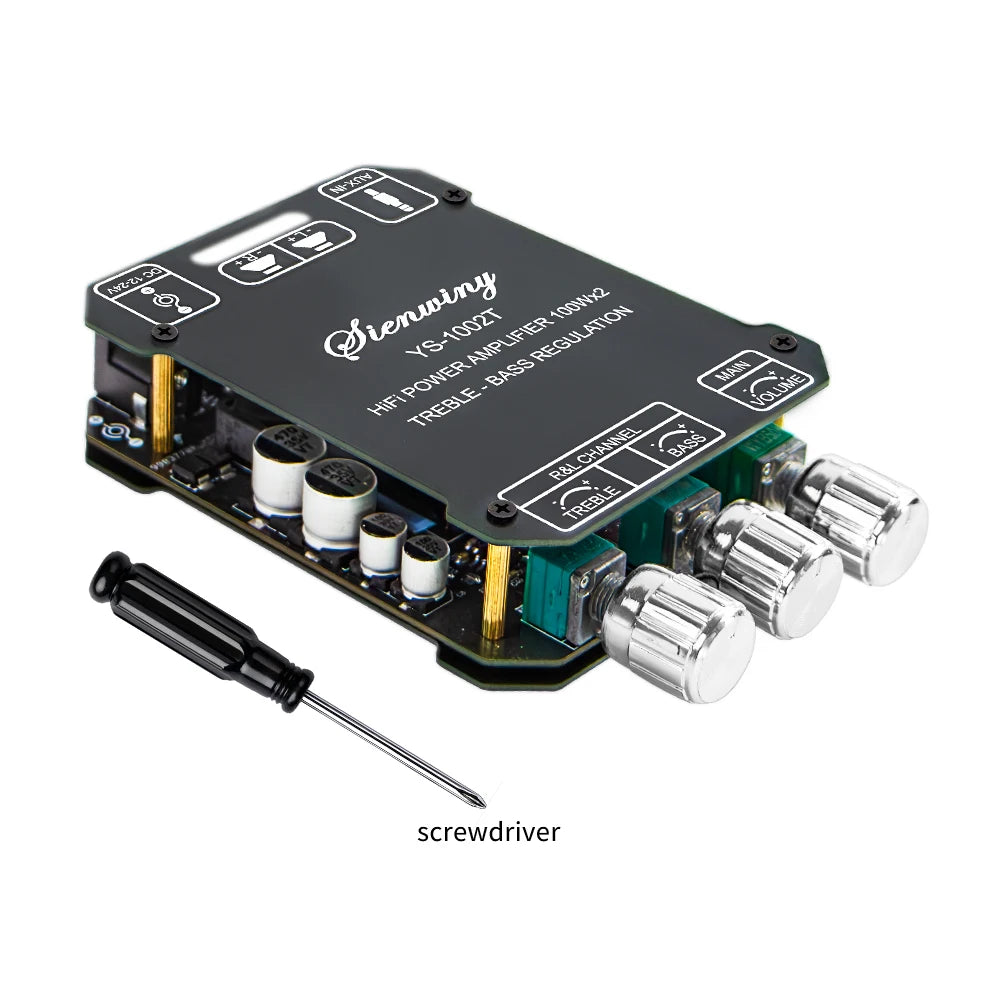

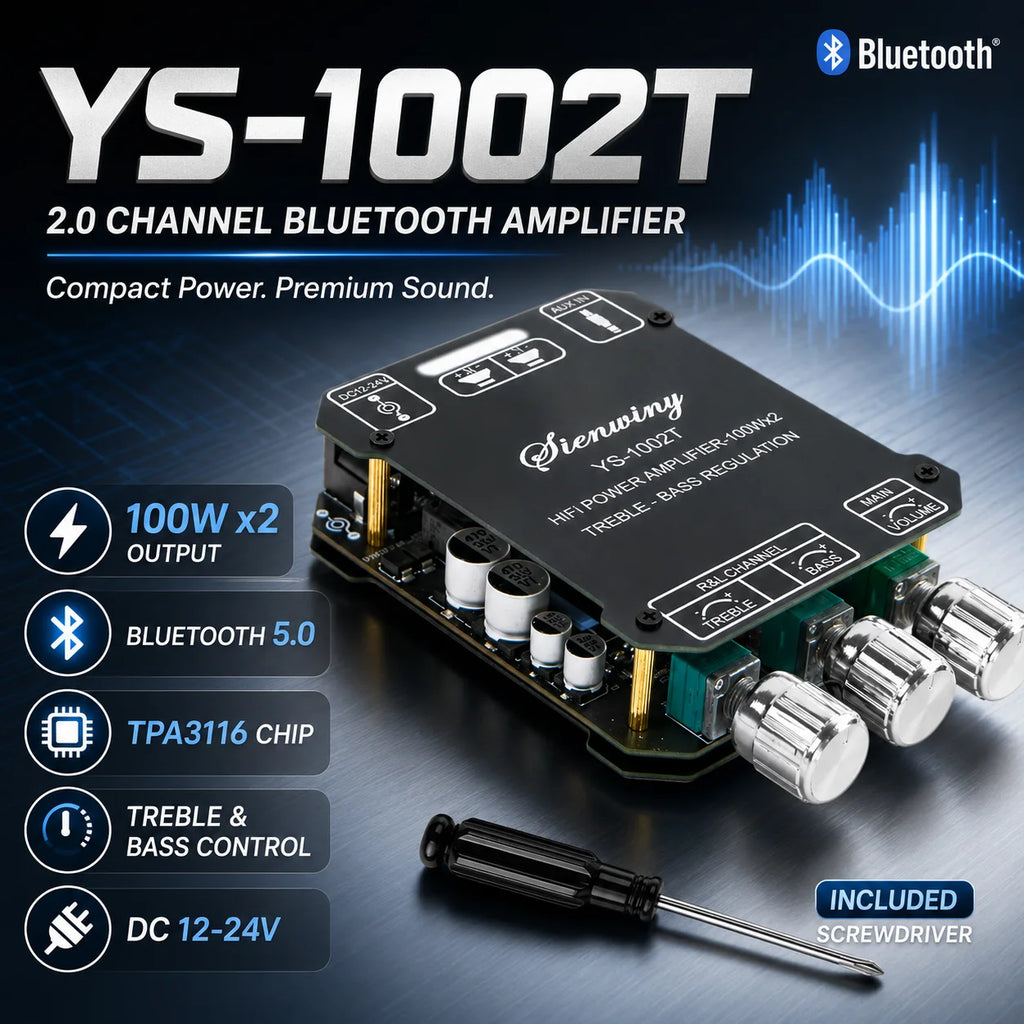

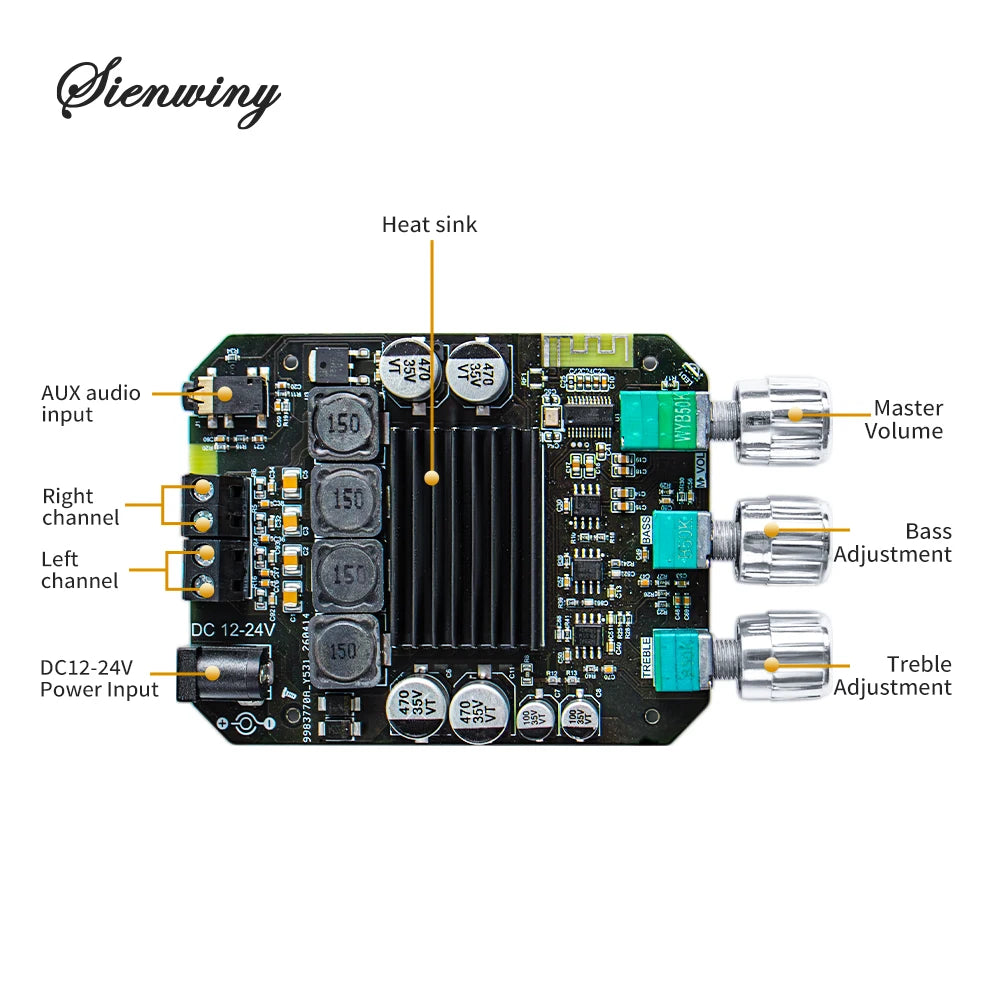

YS-1002T Model:

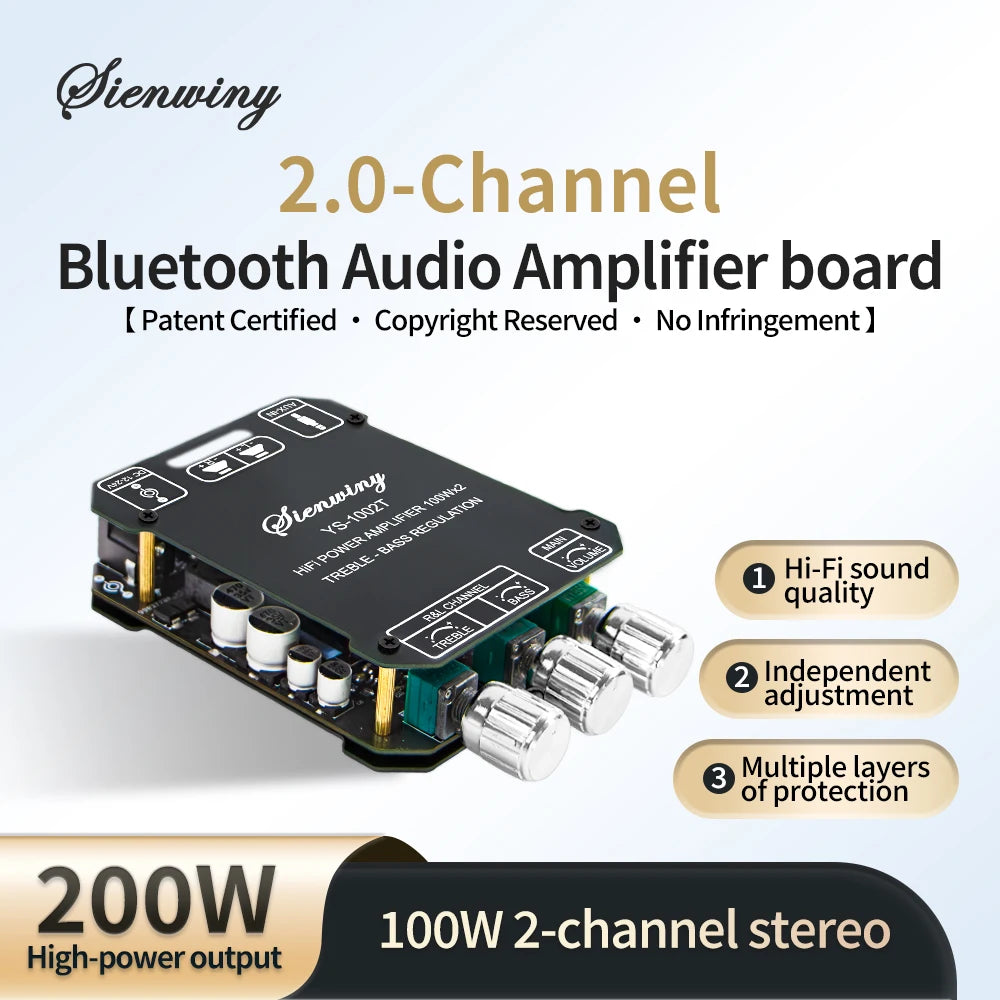

2.0 Channel Bluetooth Audio Amplifier Board
Bluetooth Audio Input

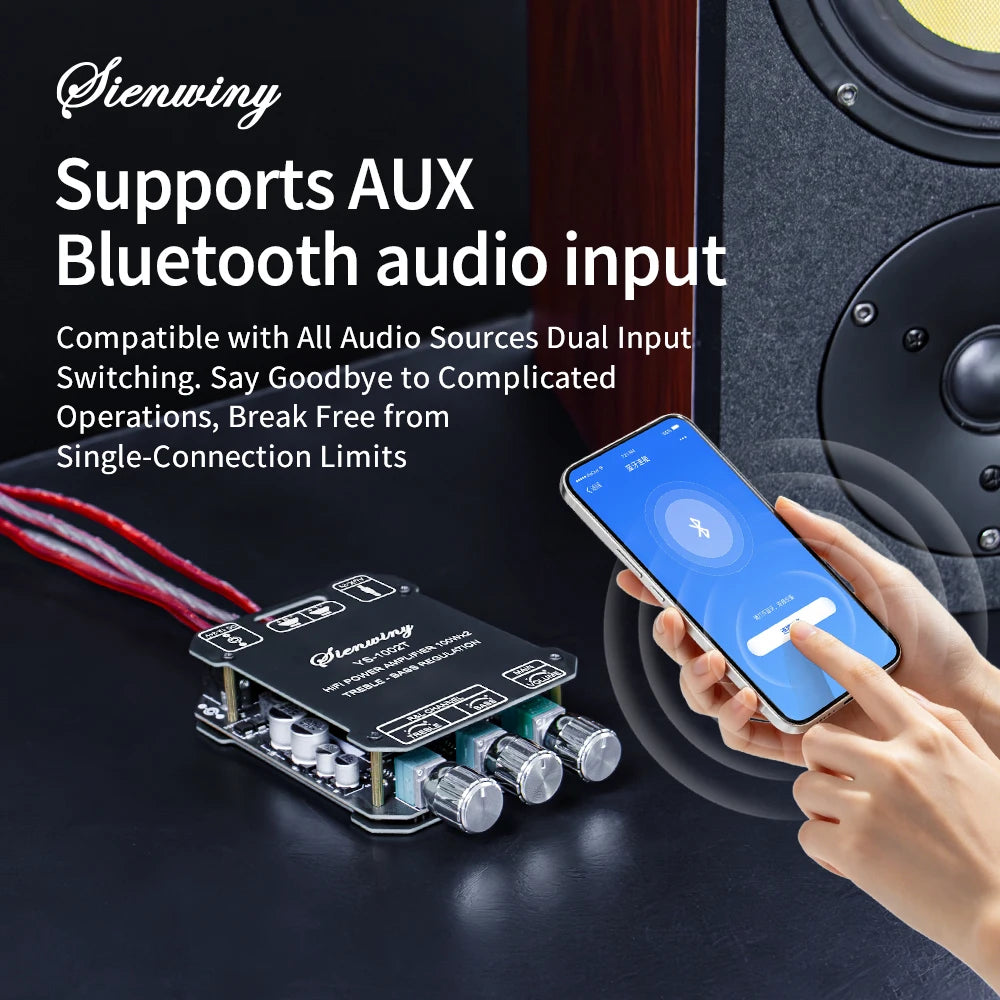

AUX + Bluetooth Input
Uses TPA3116D2 Chip

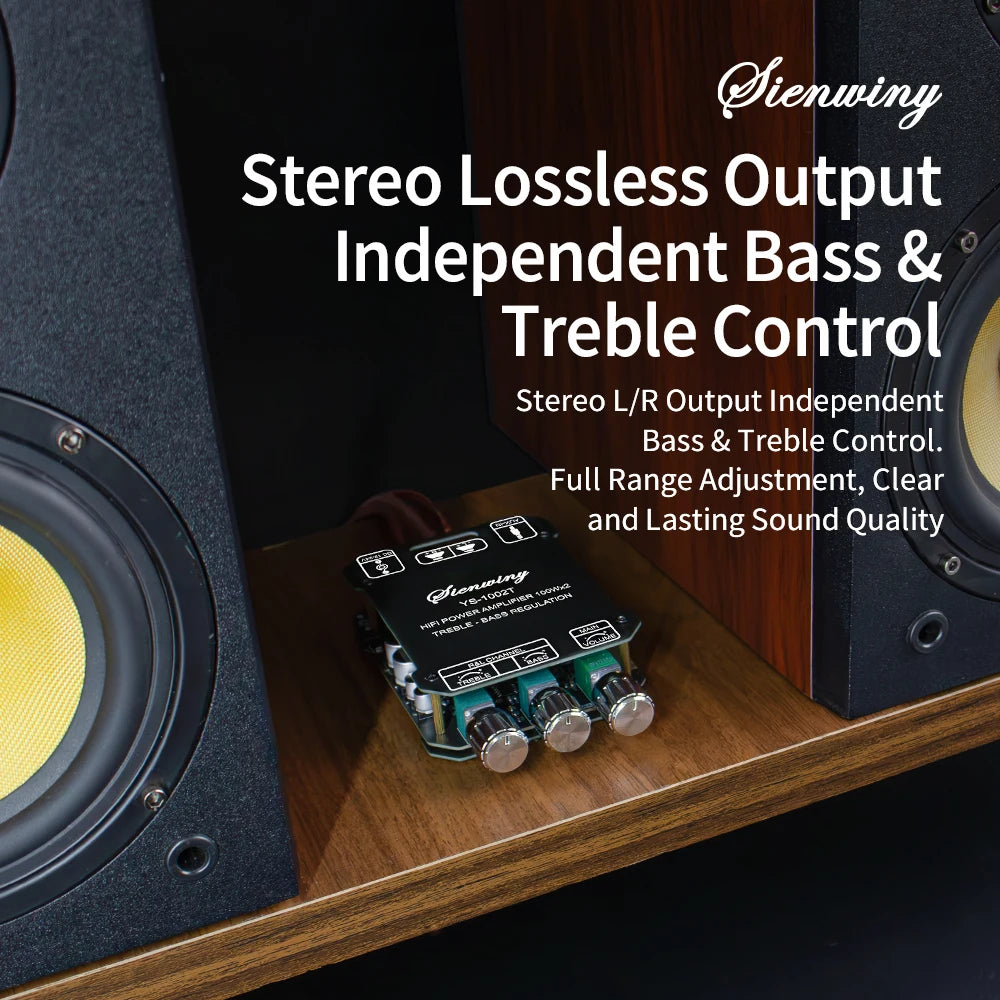

Treble And Bass Adjustment
Output Power: Up To 100W × 2
Power Supply: DC 12-24V / 5A Or Above
Speaker Match: 20-200W, 4-8Ω
Input Sensitivity: 500mV
Protection: Overvoltage, Undervoltage, Overheat, DC Detection, Short Circuit Protection

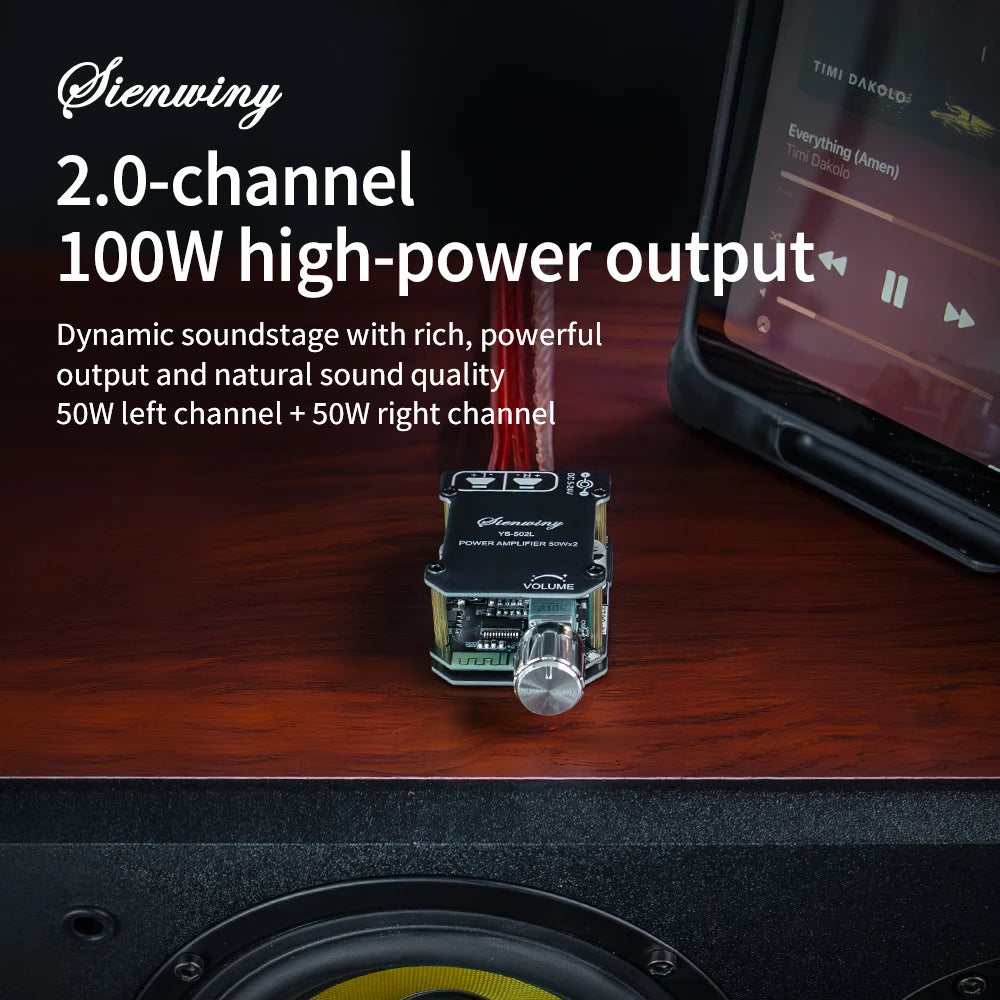

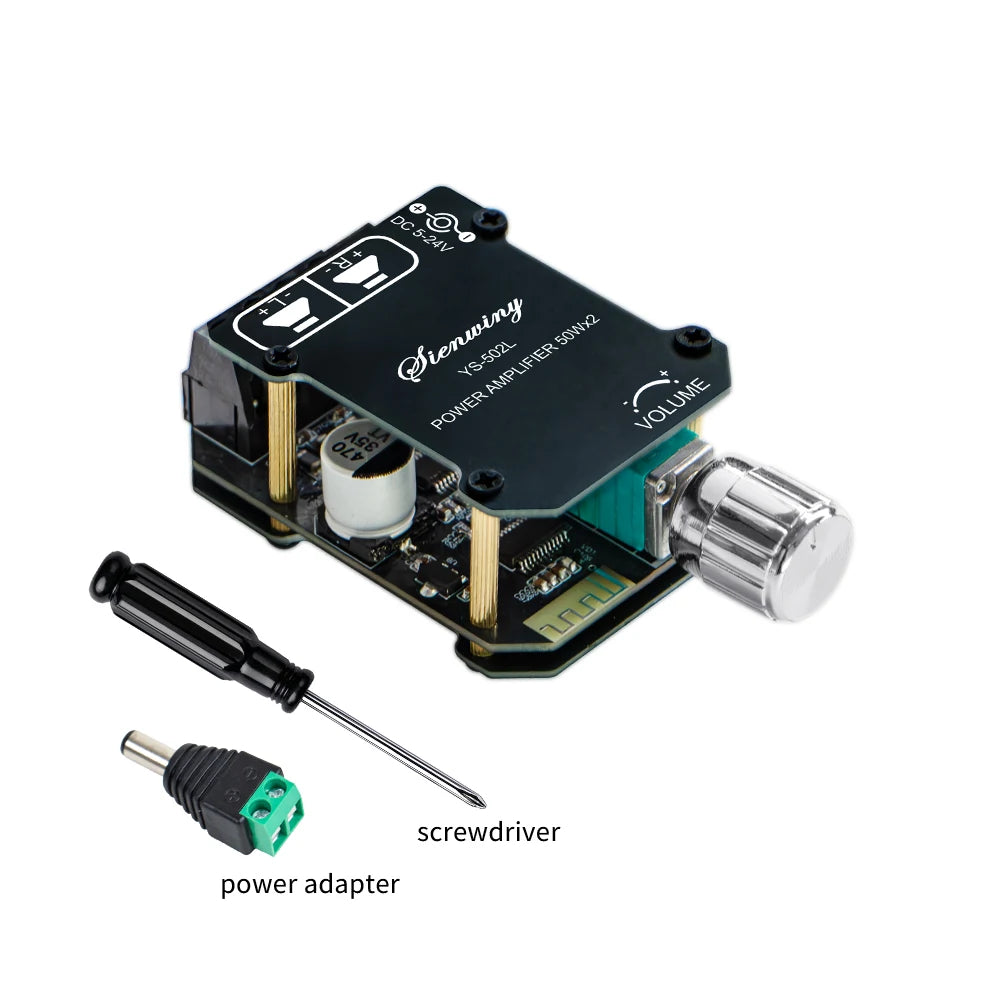

YS-502L Model:
2.0 Channel Bluetooth Audio Amplifier Board
Bluetooth 5.1 Audio Input
AUX + Bluetooth Input
Compact Mini Design
Volume Adjustment
Output Power: 50W × 2
Power Supply: DC 5-24V / 3A Or Above
Speaker Match: 10-100W, 4-8Ω
Input Sensitivity: 500mV
Protection: Overvoltage, Undervoltage, Overheat, DC Detection, Short Circuit Protection
Note:
Please select the correct model before ordering. The output power depends on the power supply voltage, current, speaker impedance, and audio input level. For better performance, please use a suitable power adapter with enough output power.
